Diamond Pistons

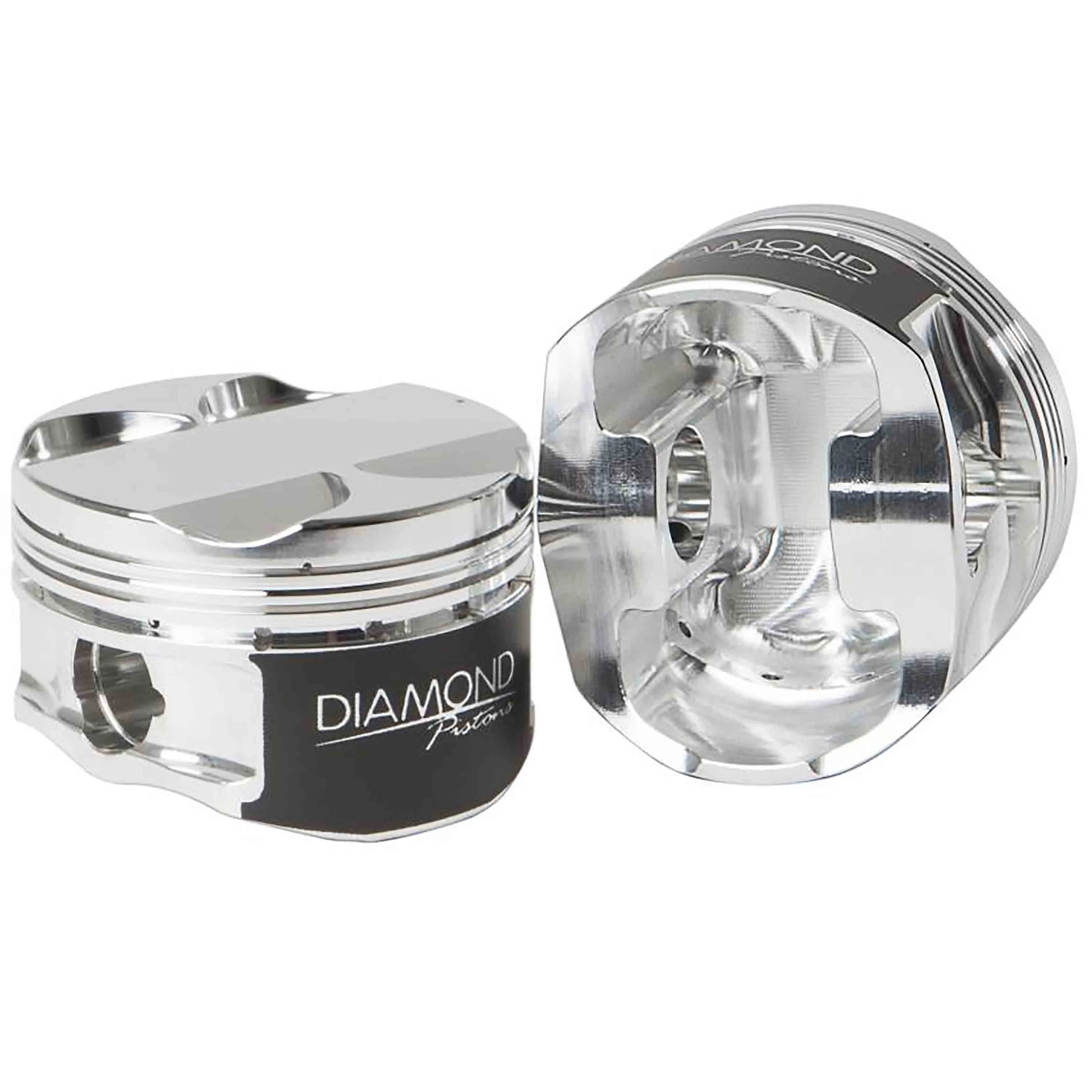

Diamond Pistons Toyota 2JZGTE Piston Kit (86.00 mm Bore / -20.70 CC Volume / 1.180 in. Comp Height – Standard Pin)

Diamond Pistons Toyota 2JZGTE Piston Kit (86.00 mm Bore / -20.70 CC Volume / 1.180 in. Comp Height – Standard Pin)

37009-6

⬤ Varastossa: 1 kpl
€1.390,00 EUR
€1.390,00 EUR
Alennusmyynti Loppuunmyyty
Sisältää verot. Toimituskulut lasketaan kassalla.
  • Product Market: Sport Compact
  • Bore Diameter: 86.00 MM
  • Compression Height: 1.180 IN
  • Piston Volume: -20.70 CC
  • Piston Average Weight: Call
  • Ring Set Part Number: 09513385
  • Top Compression Ring Thickness: 1.00 MM
  • Second Compression Ring Thickness: 1.20 MM
  • Oil Ring Thickness: 2.80 MM
  • Ring Set Included: Yes
  • Oil Rail Support Included: No
  • Wrist Pin Part Number: G8662250180C
  • Wrist Pin Outside Diameter: 0.866 IN
  • Wrist Pin Length: 2.250 IN
  • Wrist Pin Retainer Part Number: 015113-12
  • Wrist Pin Retainer Included: Yes
  • Piston Series: 2JZGTE Street/Strip Series
  • Product Type: Engine Piston Kit
  • Stroke: 94.00 MM
  • Rod Length: 5.590 IN
  • Ring Set Thickness: 1.00 MM x 1.20 MM x 2.80 MM
  • Piston Quantity: 6
  • Forging Type: Full Round
  • Cylinder Quantity: 6
  • VP Intake Depth: 0.245 IN
  • VP Exhaust Depth: 0.230 IN
  • Add-On: 015113-12 | 09513385 | G8662250180C
  • Compression Ratio: 8.50
  • Wrist Pin Dimensions: 0.866 x 2.250
